Handle Outliers Transform

Handle Outliers reads a mask created by Detect Outliers. It caps the marked numerical values or removes rows that contain them.

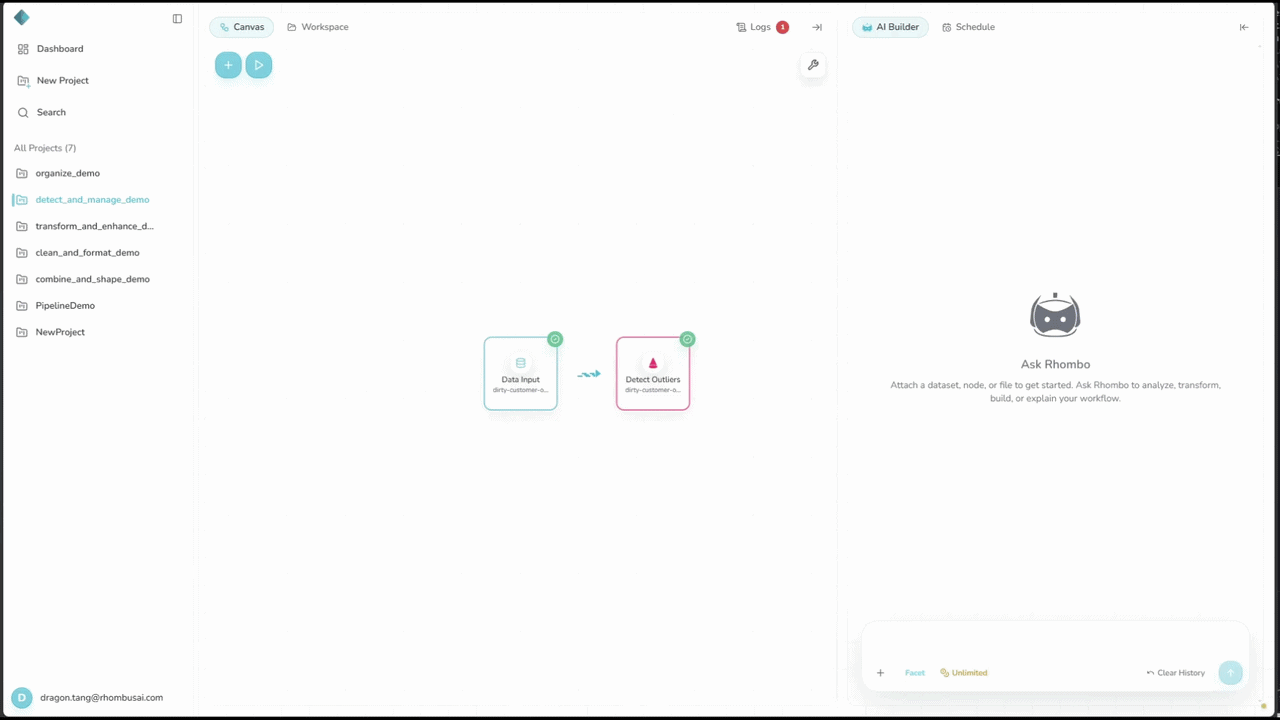

Basic Usage

To handle marked outliers:

1. Run Detect Outliers first.
2. Select the Handle Outliers transform from the transform menu.
3. Choose a Handle Option.
4. For Cap & Floor, choose a boundary method and set its options.
5. Apply the transformation.

note

Handle Outliers changes only cells marked by an earlier outlier-detection step.

Configuration Options

Basic Options

• Handle Option: Choose how to handle marked values:
  • Cap & Floor: Replace marked values with the calculated boundaries.
  • Remove: Delete every row that contains a marked value.

Advanced Options

Cap & Floor exposes these settings:

• Cap & Floor Settings: Choose how boundaries are calculated:

  • Tukey's Method
  • Median Absolute Deviation (MAD)
  • Min-Max Method

• Multiplier: Set the boundary multiplier used by Tukey's and MAD methods.

Handling Methods

Cap & Floor

Replaces each marked value outside the allowed range with the upper or lower boundary.

Use for: Keeping rows while limiting extreme values.

Remove

Deletes every row that contains a marked value.

Use for: Values known to represent invalid or irrelevant records.

Cap & Floor Methods

Tukey's Method

Uses the Interquartile Range (IQR) to set boundaries.

Use for: Data where the middle 50% is a useful measure of spread.

Median Absolute Deviation (MAD)

Measures variability around the median.

Use for: Skewed data, because MAD is less sensitive to extremes than standard deviation.

Min-Max Method

Uses minimum and maximum values as the boundaries.

Use for: Fields with strict valid bounds, such as percentages from 0 to 100.

Examples

Example: Capping Outliers in Sales Data

This example uses the mask from the Detect Outliers example: manual Z-Score detection on Sales with a threshold of 1.5.

Input Dataset (after outlier detection):

Date	Product	Sales	Outlier
2023-01-01	A	100	False
2023-01-02	B	120	False
2023-01-03	A	1500	True
2023-01-04	C	80	False
2023-01-05	B	110	False

Configuration:

• Handle Option: Cap & Floor
• Cap & Floor Settings: Tukey's Method
• Multiplier: 1.5

Result:

Date	Product	Sales	Outlier
2023-01-01	A	100	False
2023-01-02	B	120	False
2023-01-03	A	138.75	True
2023-01-04	C	80	False
2023-01-05	B	110	False

The unmarked Sales values are 100, 120, 80, and 110. Their first quartile is 95, third quartile is 112.5, and IQR is 17.5. With a 1.5 multiplier, the upper cap is 112.5 + (1.5 × 17.5) = 138.75, so 1500 becomes 138.75.

Best Practices

1. Use domain rules to decide whether a marked value is invalid or merely unusual.
2. Cap the value when the rest of the row is still useful. Use Remove only when deleting the entire record is justified.
3. Record the boundary method and multiplier.
4. Review the distribution and row count after handling.

Troubleshooting

• Too many values are capped: Adjust the Tukey's or MAD multiplier.
• Remove deletes too many rows: Use Cap & Floor instead.
• The result looks distorted: Check the new distribution for bias.
